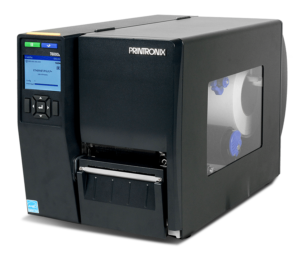

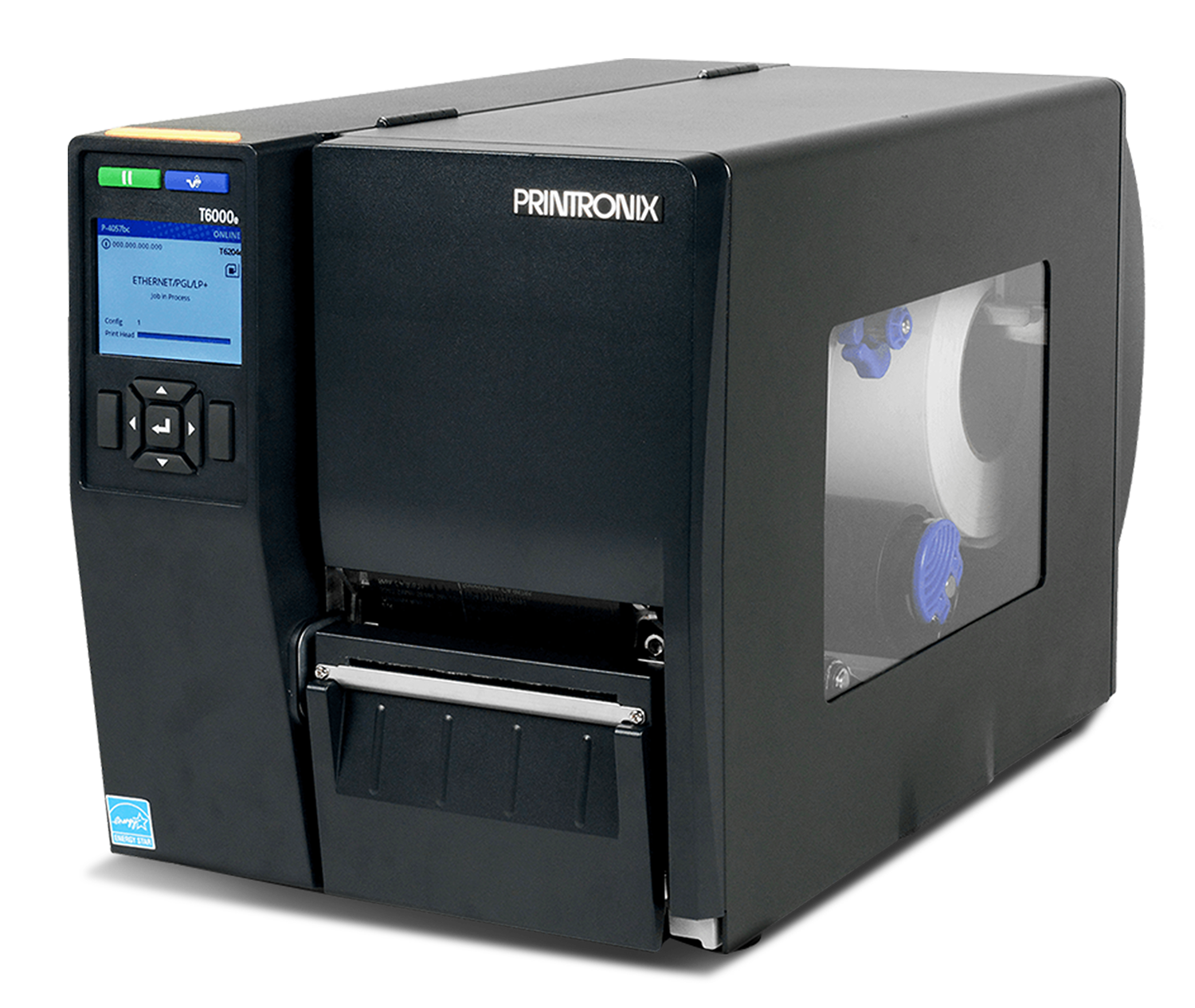

TSC T6604e 600 dpi RFID Thermal Transfer Printer with ODV-2D

Description

The TSC T6604e (Printronix T6E6X4 ODV2D) is a high-performance, industrial-grade thermal transfer printer built to meet the demanding requirements of manufacturing, logistics, healthcare, and compliance-heavy industries. Featuring 600 dpi high-resolution output, this 4-inch printer delivers ultra-sharp text, intricate graphics, and highly accurate barcodes—ideal for compact labels and detailed compliance tags.

Equipped with ODV-2D inline barcode verification, the T6604e not only prints but also verifies and grades every barcode in real time, ensuring full compliance with ISO 15415, 15416, and 15426 standards. If a barcode fails validation, the printer automatically strikes it out and reprints a new label, guaranteeing 100% readable barcodes on every batch.

Designed for 24/7 operations, the printer features a rugged metal chassis, a user-friendly color LCD display, and multiple connectivity options, including Ethernet, USB, RS-232, Parallel, GPIO, and optional Wi-Fi. With support for major printer languages and emulations (ZPL, DPL, IPL, etc.), it offers seamless integration into existing systems.

Key Features:

• High Resolution Printing: 600 dpi for razor-sharp barcodes and fine text

• ODV-2D Barcode Verifier: Inline 1D/2D barcode grading and auto reprint of invalid labels

• Fast Performance: Prints up to 6 inches per second at 600 dpi

• Heavy-Duty Build: Industrial metal construction for 24/7 reliability

• Flexible Connectivity: Ethernet, USB, RS-232, Parallel, GPIO, Optional Wi-Fi

• Media & Ribbon Capacity: Supports up to 4.5″ media width and 450m ribbon length

• User Interface: Full-color LCD screen with navigation buttons

• Wide Compatibility: ZPL, DPL, IPL, and 9 emulations supported

• High Daily Volume: Prints up to 10,000 labels/day

Technical Specifications:

• Print Width: 4.1″ (104 mm)

• Resolution: 600 dpi (24 dots/mm)

• Max Print Speed: 6 in/sec (152 mm/s)

• Print Method: Direct Thermal & Thermal Transfer

• Memory: 512 MB RAM, 128 MB Flash (expandable)

• Ribbon Capacity: 450 meters

• Media Width: Up to 4.5″ (114 mm)

• Display: Color LCD

• Connectivity: Ethernet, USB, RS-232, Parallel, GPIO, Wi-Fi (optional)

• Barcode Verification: ODV-2D inline 1D/2D grading

• Dimensions: 10.97″ W × 12.3″ H × 20.3″ D

• Weight: 31.9 lbs (14.5 kg)
