Description

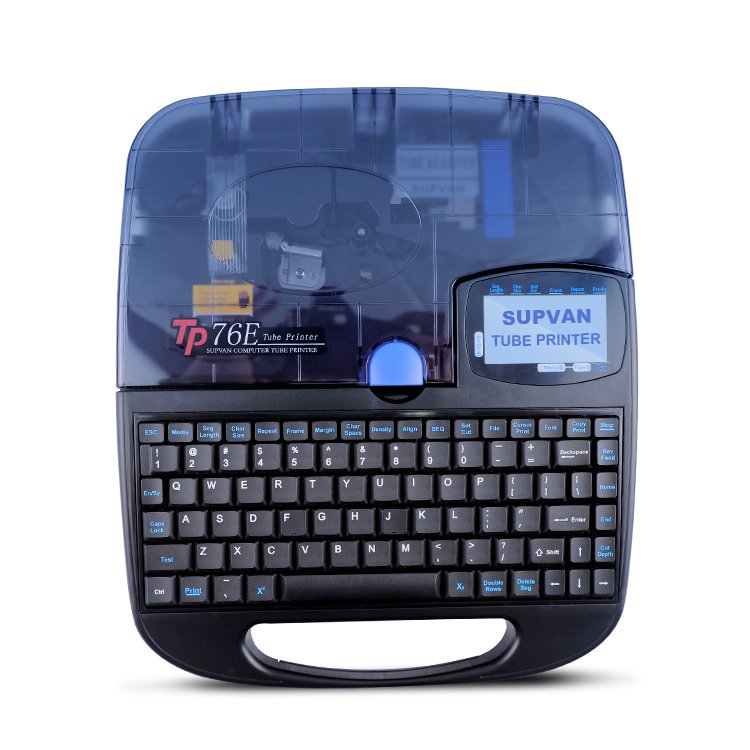

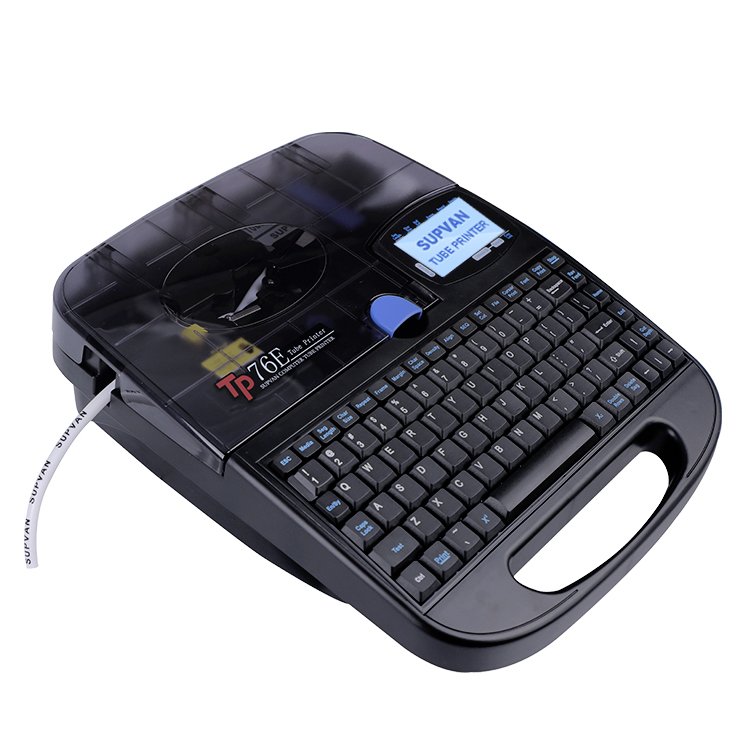

SUPVAN TP76E Cable ID Ferrule Printer
The SUPVAN TP76E is a professional-grade, high-speed ferrule printing machine designed for heavy-duty industrial marking. Known for its robust build and “all-in-one” functionality, it is a preferred choice for electrical engineers and switchboard manufacturers. The TP76E excels in creating permanent, clear identification for wires and cables using PVC tubes, heat-shrink sleeves, and self-adhesive labels. It offers the flexibility of standalone operation via its integrated keyboard or advanced batch printing through PC connectivity.
Key Features
-
Dual Operation Mode: Use it as a portable standalone unit with its 85-key standard keyboard or connect it to a PC via USB for high-volume data import from Excel.
-
Fully Automatic Functionality: Features automatic feeding, ribbon pre-tightening, and a high-precision automatic half-cut and full-cut system.
-
High-Resolution Output: Delivers crisp, industrial-grade 300 dpi thermal transfer printing that is resistant to oil, wear, and fading.
-
Large Storage Capacity: The internal memory can store up to 200 files (approximately 1.2 million characters), allowing for quick recall of frequently used labeling templates.
-
Enhanced Visibility: Features a large, white backlit LCD display that supports a 2-line editing interface for easy monitoring of print data.
-
Durability: Built with a sturdy frame and a transparent cover, allowing users to monitor the printing process while protecting internal components from dust.

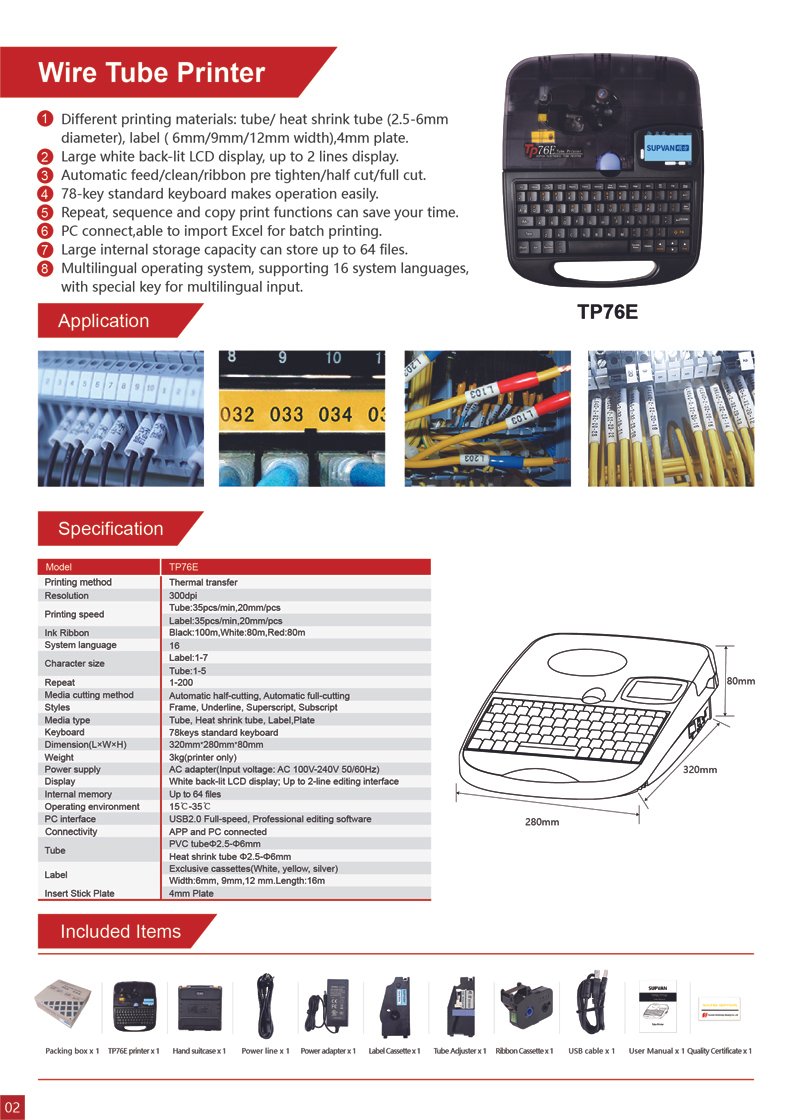

Technical Specifications
| Feature | Specification |
| Printing Method | Thermal Transfer |
| Resolution | 300 dpi |
| Printing Speed | Up to 35 pieces/min (20mm length) |
| Tube Diameter Support | 2.5 mm to 6.0 mm (PVC and Heat Shrink) |
| Label Tape Widths | 6 mm, 9 mm, 12 mm |
| Cutting Method | Automatic Full-cut / Automatic Half-cut |
| Input Interface | 85-key QWERTY Keyboard / PC USB 2.0 |
| Internal Memory | 200 Files (max 12,000,000 characters) |
| Display | Backlit LCD (2 lines of content) |
| Power Supply | AC Adapter (100V – 240V) |
| Dimensions | 320 \ 280 \ 80 mm |
| Weight | Approx. 3.0 kg |
