Godex ZX1200i+ Industrial Label Printer

The Godex ZX1200i+ is a high-performance industrial barcode label printer engineered for high-volume, 24/7 heavy-duty applications.¹ Featuring a robust all-metal chassis and a powerful 32-bit RISC CPU, this printer is designed to handle the most demanding environments, including logistics, manufacturing, and warehouse management.² With its intuitive 3.2″ color touchscreen and flexible connectivity options, the ZX1200i+ offers a seamless user experience and effortless integration into existing workflows.

Key Features

Industrial-Grade Durability: Built with a rugged all-metal frame and a die-cast print mechanism to withstand harsh industrial conditions.
High-Speed Performance: Delivers rapid printing at speeds up to 10 inches per second (254 mm/s) without compromising print quality.
Intuitive User Interface: Equipped with a 3.2″ color LCD touchscreen for easy configuration, calibration, and real-time status monitoring.
Massive Memory Capacity: Features 256 MB Flash and 256 MB SDRAM, providing ample storage for fonts, graphics, and large print buffers.

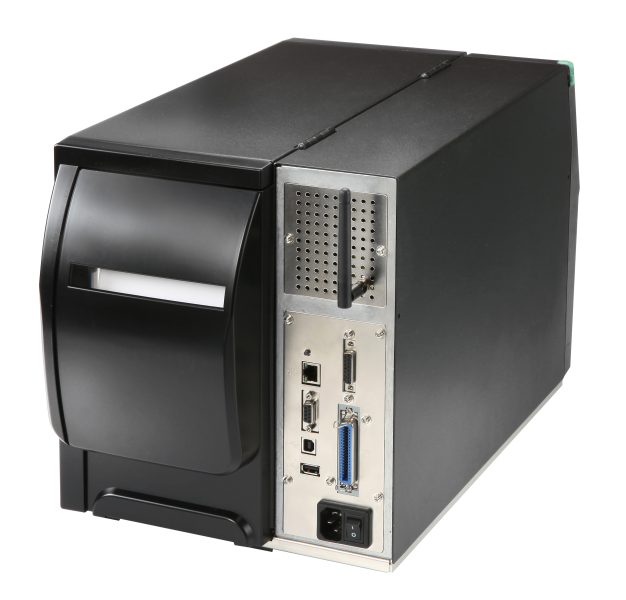

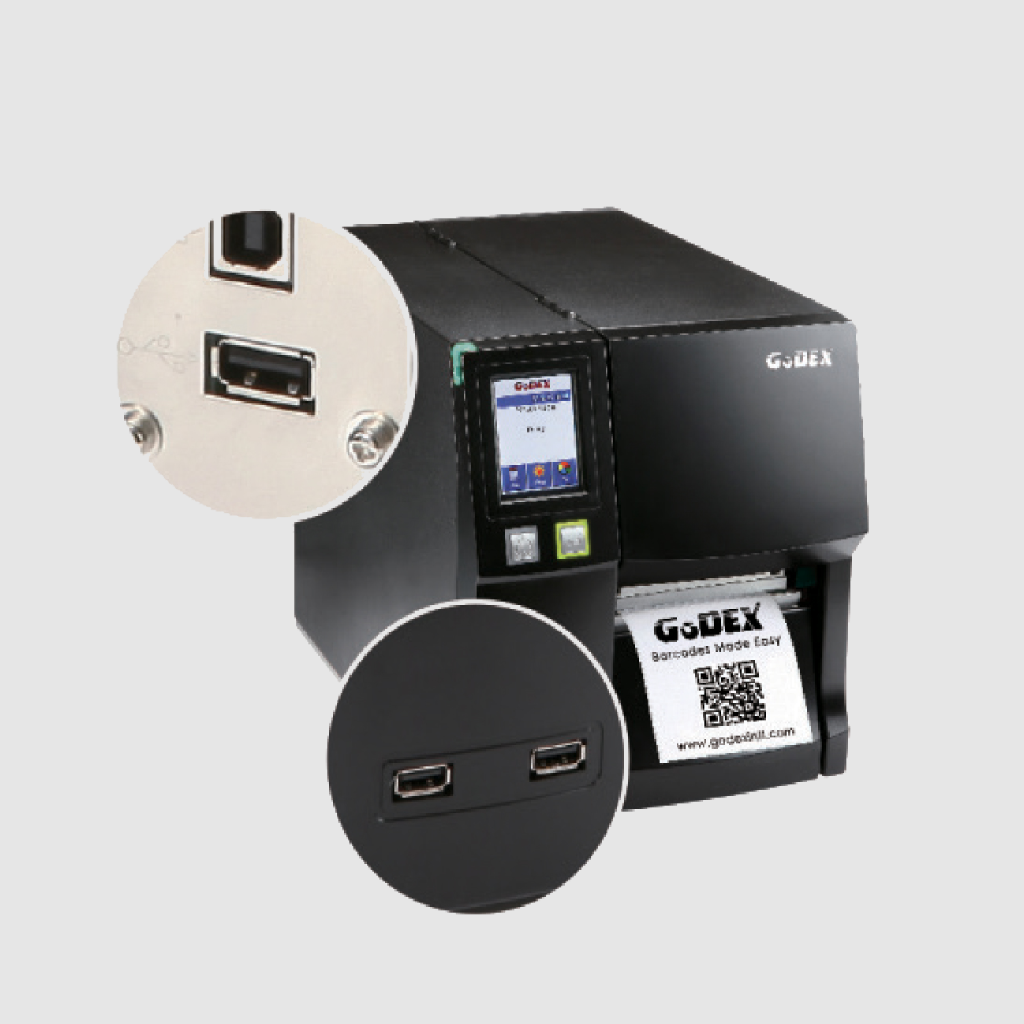

Superior Connectivity: Comes standard with USB 2.0, RS-232 Serial, and Ethernet (10/100 Mbps).⁸ It also includes 3 USB Host ports for standalone operations using keyboards or scanners.
Versatile Media Support: Supports a wide range of media types and a large 450-meter ribbon capacity, significantly reducing downtime for roll changes.
Advanced Sensors: Full-range adjustable reflective and transmissive sensors ensure precise label alignment for various label shapes and sizes.

Technical Specifications

Specification	Details
Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi (8 dots/mm)
Max. Print Speed	Up to 10 ips (254 mm/s)
Max. Print Width	4.25″ (108 mm)
Max. Print Length	279.53″ (7100 mm)
Processor	32-Bit RISC CPU
Memory	256 MB Flash / 256 MB SDRAM
Interfaces	USB 2.0 (Type B), Serial (RS-232), Ethernet (RJ45), 3 x USB Host
Control Panel	3.2″ Color Touchscreen LCD with LED indicators
Ribbon Capacity	Max. Length: 450 m \| Max. Width: 110 mm \| Core: 1″
Media Type	Continuous, Gap, Black Mark, and Punched Hole
Dimensions	465 mm (L) x 270.7 mm (W) x 308.2 mm (H)
Weight	13.6 kg (Approx.)
