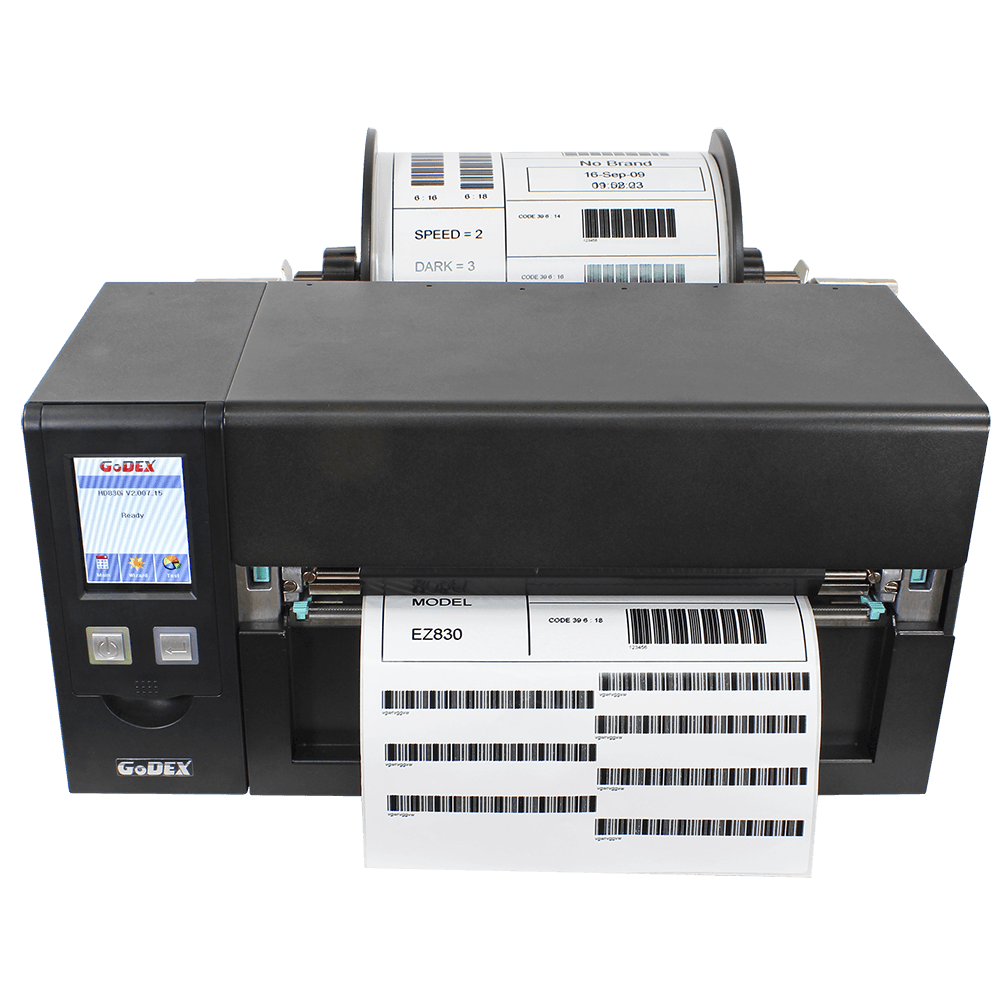

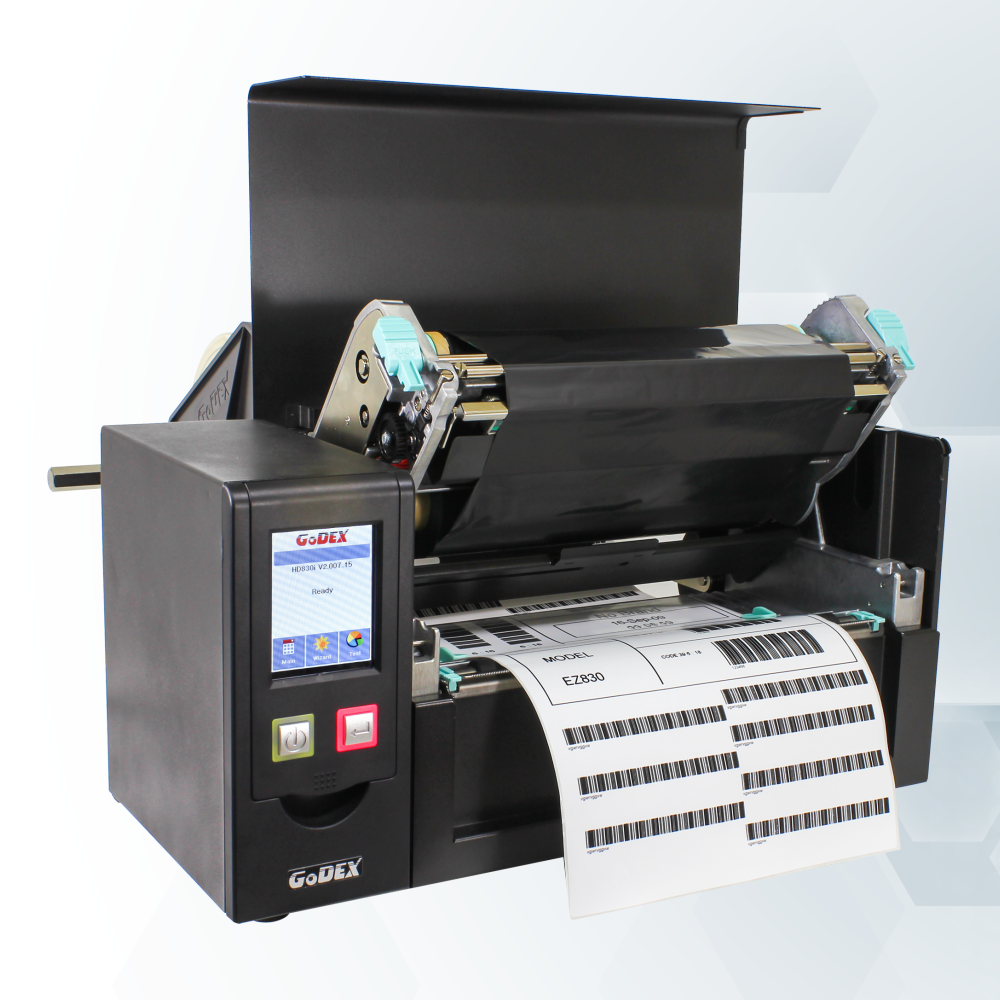

Godex HD830i+ Industrial Label Printer
The Godex HD830i+ is a top-tier, 8-inch wide industrial barcode printer designed for heavy-duty applications that require large-format labels. It represents the pinnacle of Godex’s engineering, blending a rugged die-cast aluminum mechanism with a space-saving footprint.
Whether you are printing chemical drum labels, pallet tags, or wide-format logistics stickers, the HD830i+ provides consistent 300 DPI high-resolution output. Its 3.2-inch color touchscreen offers an intuitive interface, allowing for standalone operation and simplified maintenance.
Key Features
-
Wide Format Printing: Capable of printing labels up to 8.64 inches wide, making it perfect for oversized industrial labeling.
-
Rugged Construction: Features a fortified die-cast printing mechanism and a robust metal casing to withstand harsh industrial environments.
-
Intuitive Interface: A 3.2-inch color TFT LCD touchscreen enables easy navigation and allows for PC-free operation.
-
Smart Design: A clever space-saving design ensures it fits into tight workspaces despite its wide-format capabilities.
-
Advanced Stabilizing: Equipped with adaptive dampening technology and an internal media pressure plate to stabilize the printing process and ensure crisp quality.
-
Flexible Connectivity: Standard USB, Serial, and Ethernet ports, with optional Bluetooth and Wi-Fi modules for wireless integration.
-
High Memory Capacity: Comes with 256 MB Flash and 256 MB SDRAM to handle complex label designs and large data batches.
Technical Specifications
| Feature | Specification |
| Print Method | Thermal Transfer / Direct Thermal |
| Resolution | 300 dpi (12 dots/mm) |
| Print Speed | Up to 5 ips (127 mm/s) |
| Print Width | 8.64” (219.5 mm) |
| Print Length | Min. 1” (25.4 mm) / Max. 50.09” (1500 mm) |
| Memory | 256 MB Flash / 256 MB SDRAM |
| Processor | 32-Bit RISC CPU |
| Interfaces | USB 2.0 (Type B), Serial Port (RS232), Ethernet (10/100 Mbps), USB Host (Type A) |
| Ribbon Length | Max. 981′ (300 m) |
| Ribbon Width | Min. 1.18” (30 mm) – Max. 8.66” (220 mm) |
| Sensors | Adjustable reflective & transmissive sensors (central aligned) |
| Control Panel | 3.2” Touch Screen LCD with LED backlight and Calibration Button |
