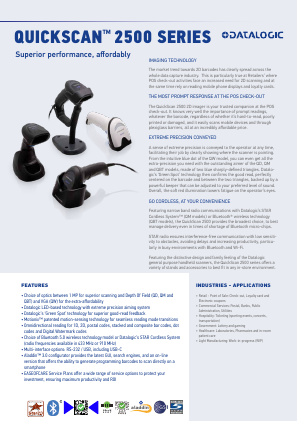

Datalogic QuickScan QD2590 Handheld Scanner
The Datalogic QuickScan QD2590 is a premium, entry-level 2D corded handheld imager designed for superior performance in retail, healthcare, and light manufacturing. It features a high-performance 1-Megapixel sensor that provides best-in-class depth of field and snappy reading capabilities. Built to handle the modern demands of the POS, it effortlessly captures 1D and 2D barcodes from smartphone screens and even through plexiglass barriers.
Key Features
-
1 MP Optical Resolution: Delivers superior scanning performance and a wide depth of field for easy targeting.
-
Datalogic “Green Spot” Technology: Patented visual feedback that projects a green spot directly on the barcode for a confirmed “good read.“
-
Motionix™ Sensing: Automatically detects when the scanner is picked up or placed in a stand, seamlessly switching between handheld and presentation modes.
-
Precision Aiming: Uses an intuitive blue LED-based aiming system (two blue triangles) for extreme accuracy.
-
Rugged Durability: IP52-rated for protection against dust and water; built to withstand multiple drops from 1.5 meters onto concrete.
-
Eye-Friendly Illumination: Features a soft red illumination that reduces eye strain for operators during long shifts.
Technical Specifications
| Feature | Specification |
| Scanning Type | 2D Area Imager (Omnidirectional) |
| Sensor Resolution | 1280 x 800 pixels (1 Megapixel) |
| Decoding Capability | 1D, 2D, Postal Codes, Stacked, and Digimarc |
| Motion Tolerance | 30 IPS (Inches Per Second) |
| Print Contrast | Minimum 15% |
| Interfaces | USB (including USB-C support), RS-232, Keyboard Wedge |
| Ingress Protection | IP52 |
| Drop Resistance | Withstands drops from 1.5 m / 5.0 ft |
| Weight | Approx. 145 g |
| Operating Temp | 0°C to 50°C |
