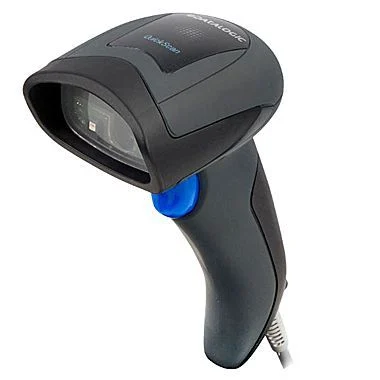

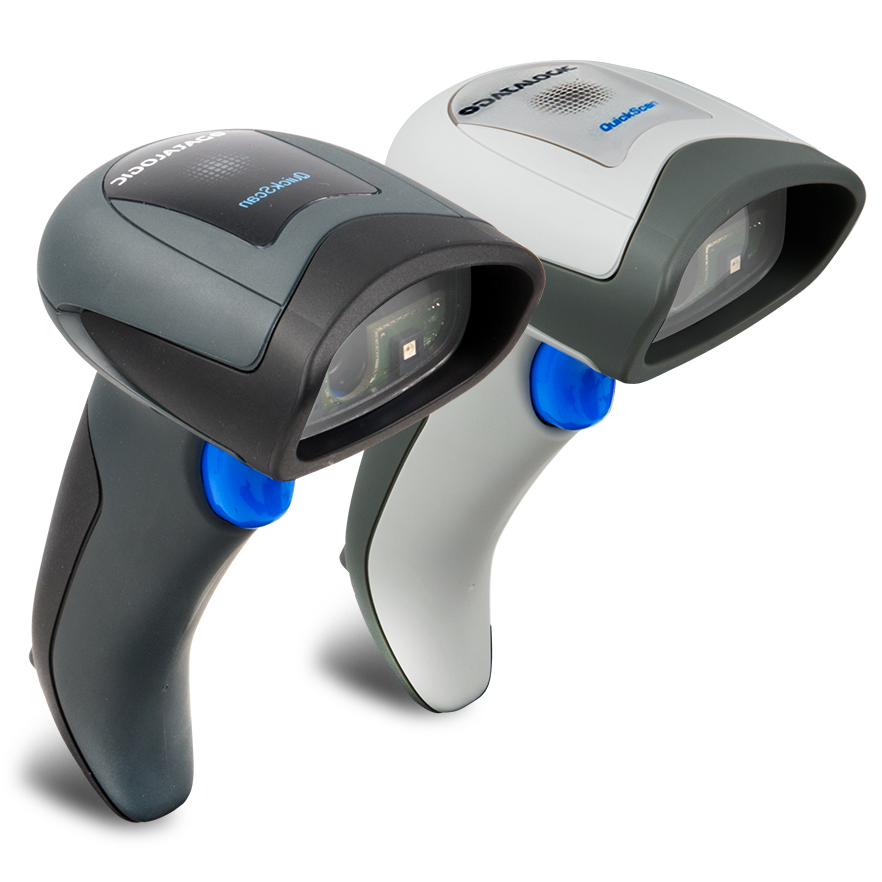

Datalogic QuickScan QD2430 Handheld Scanner

Description

Datalogic QuickScan QD2430 Handheld Scanner

The Datalogic QuickScan QD2430 is an entry-level 2D corded imager specifically designed to meet the needs of retailers at an affordable price. It features an elegant, lightweight design without compromising on the legendary durability Datalogic is known for. This scanner is ideal for point-of-sale (POS) applications, offering outstanding omnidirectional reading performance on virtually all common 1D and 2D barcodes, whether they are printed on labels or displayed on mobile devices.

Key Features

Omnidirectional Reading: Eliminates the need to align the scanner with the barcode, significantly increasing transaction speed and efficiency.
Green Spot Technology: Includes Datalogic’s patented ‘Green Spot’ for good-read feedback directly on the code, perfect for noisy environments.
Reduced Visual Stress: Features a soft, dark red illumination combined with two blue LED triangles pointing at the target, minimizing eye fatigue for operators.
Mobile Phone Scanning: Easily captures barcodes from smartphone screens, making it perfect for mobile loyalty programs, digital coupons, and mobile ticketing.
Rugged Reliability: Built to withstand repeated drops from 1.5 m (5.0 ft) onto concrete and rated IP42 for protection against dust and water.
Host Download Capability: Ready for remote management and host download, simplifying large-scale deployments.

Technical Specifications

Feature	Specification
Scanning Type	2D Area Imager
Light Source	Aiming: 2 Blue LEDs; Illumination: Red LED 610-650 nm
Print Contrast	25% minimum reflective difference
Reading Angle	Pitch: +/- 65°; Roll (Tilt): 360°; Skew (Yaw): +/- 60°
Resolution (Max)	0.102 mm / 4 mils (1D Linear)
Interfaces Supported	Keyboard Wedge, RS-232, USB (HID or COM)
Drop Specification	Withstands repeated drops from 1.5 m / 5.0 ft
Environmental Sealing	IP42
Weight	Approx. 145 g (5.11 oz)
Dimensions	$16.3 \times 9.1 \times 4.1$ cm ( $6.4 \times 3.6 \times 1.6$ in)
