Description

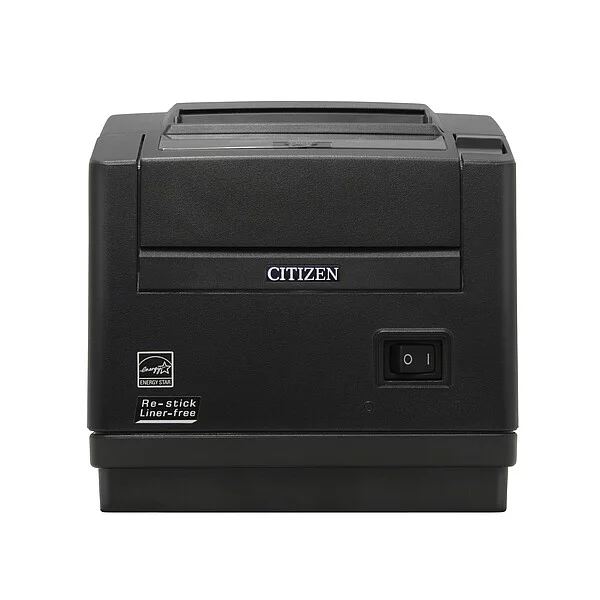

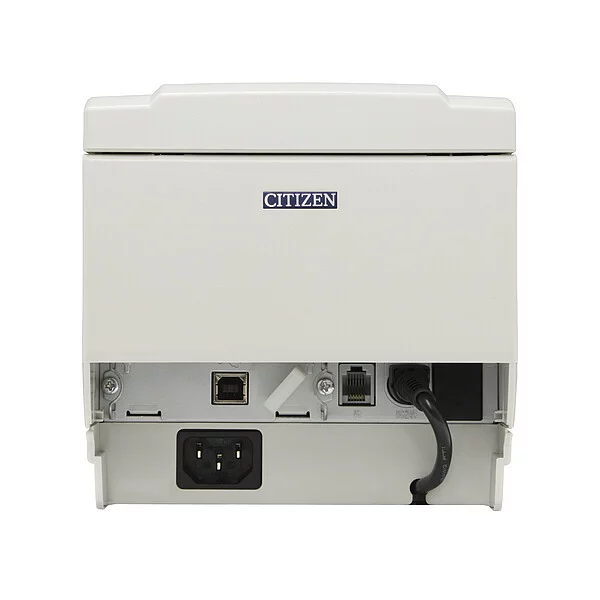

Citizen CT-S601IIR Receipt Printer

The Citizen CT-S601IIR is a high-performance, eco-friendly POS printing solution designed for businesses that require versatility and efficiency. As an upgraded version of the popular CT-S601II, the “R” model stands for Re-Stick, offering specialized support for liner-free labels (like MAXStick®). This allows businesses to print temporary self-adhesive labels and receipts that can be easily peeled and repositioned without leaving a sticky residue or creating paper waste from backing liners.

Its compact design, top-exit paper path, and fast thermal printing make it the perfect choice for busy environments such as retail, quick-service restaurants (QSR), hospitality, and logistics.

Key Features

Liner-Free Printing: Supports specialized liner-free media, reducing environmental waste and allowing for easy-to-use self-adhesive labels.
Eco-Friendly Efficiency: Features an adjustable print length to minimize paper consumption and eliminate traditional label backing waste.
High-Speed Output: Delivers fast and reliable printing at speeds up to 175 mm/sec, ensuring minimal customer wait times.
Compact & Integrated Design: Includes a built-in power supply to save counter space and keep workstations organized.
Top Paper Exit: Ideal for under-counter installation or desktop use where space is limited.

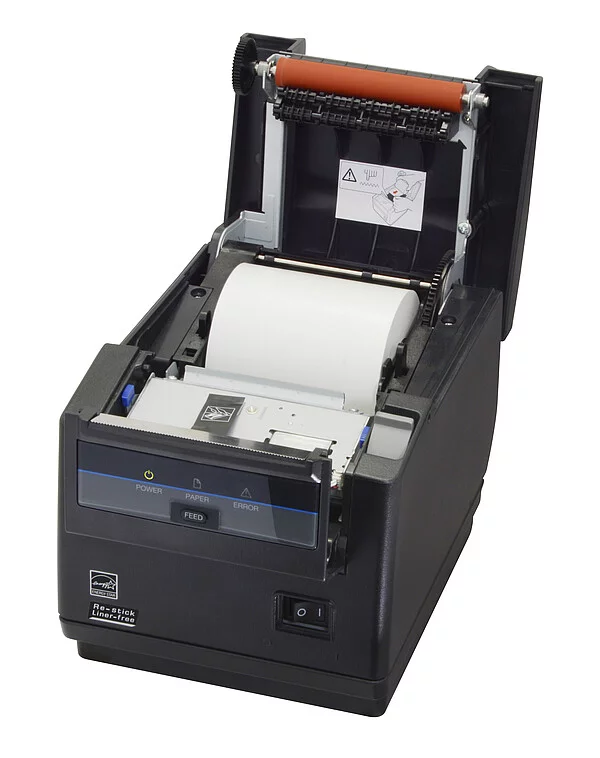

Easy Maintenance: Features a tool-free maintenance design and a self-retracting cutter to quickly clear paper jams.
Versatile Connectivity: Supports a wide range of interchangeable interface cards including USB, Serial, Ethernet, Bluetooth (MFi), and Wi-Fi.

Technical Specifications

Feature	Specification
Print Technology	Direct Thermal
Resolution	203 dpi (8 dots/mm)
Print Speed	Max. 175 mm per second
Print Width	Max. 80 mm (on 82.5 mm media)
Media Width	58 mm, 60 mm, 80 mm, 82.5 mm (+/- 1 mm)
Media Type	Thermal Receipt Paper & Liner-free Labels (MAXStick®/Nakagawa)
Roll Diameter	Max. 83 mm
Cutter	Guillotine type (Full or Partial cut)
Sensors	Paper end, Rear cover open
Emulation	ESC/POS™
Power Supply	100 – 240V, 50-60 Hz (Internal/Integrated)
Reliability	Thermal Head: 100 Million Pulses (75 km)
Dimensions	145 x 192 x 120 mm (DC version)
Weight	Approx. 1.6 kg to 2.0 kg
