Description
Citizen CL-S703R Label Printer
The Citizen CL-S703R is a high-performance industrial barcode printer designed for users who require precision, durability, and high-resolution output.1 Building on the robust heritage of the CL-S700 series, the “R” version features an integrated internal rewinder, making it a powerhouse for high-volume batch printing where labels need to be neatly wound for later use.
Engineered with a heavy-duty metal mechanism, this printer is built to withstand harsh industrial environments while delivering crisp 300 dpi prints.3 Its unique Hi-Open™ case lifts vertically, saving valuable desk space, while the ARCP™ (Active Ribbon Control & Positioning) technology ensures wrinkle-free printing on a variety of media types.
Key Features
-
Integrated Internal Rewinder: Easily peel and present labels or rewind the entire roll for high-volume applications.
-
High-Resolution Printing: 300 dpi (12 dots/mm) ensures sharp text, dense barcodes, and detailed graphics.
- Industrial Durability: Features a rugged metal chassis and heavy-duty print engine for 24/7 reliability.
-

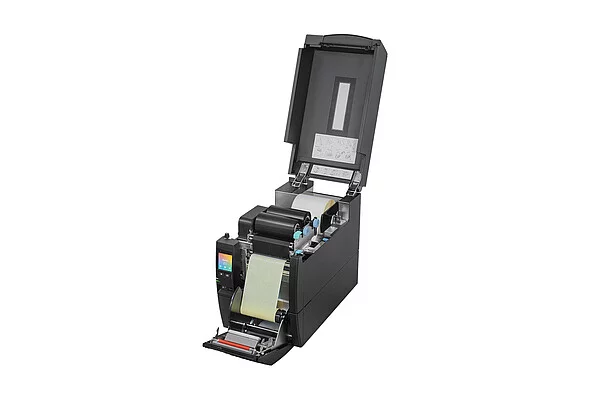

Space-Saving Design: The Hi-Open™ mechanism allows the printer to be opened vertically, meaning its footprint remains the same whether open or closed.
-
Precision Ribbon Control: Equipped with ARCP™ technology to prevent ribbon wrinkling and media slippage.
-
User-Friendly Interface: Large backlit LCD screen for easy configuration and status monitoring.
-
Versatile Connectivity: Comes standard with Serial and USB interfaces, with optional Ethernet and Parallel cards available.
Technical Specifications
| Specification | Details |
| Print Technology | Thermal Transfer & Direct Thermal |
| Resolution | 300 dpi ($12 \text{ dots/mm}$) |
| Print Speed | Up to 8 inches per second (200 mm/s) |
| Max. Print Width | 4.1 inches (104 mm) |
| Media Width | 1 inch to 4.6 inches (25.4 mm to 118 mm) |
| Ribbon Capacity | Up to 450 meters (Ink side in or out) |
| Memory | 16 MB Flash, 64 MB RAM |
| Emulations | Cross-Emulation™ (Datamax® and Zebra® ZPL2® auto-switching) |
| Rewinder | Full-roll internal rewinder (Factory Fitted) |
| Weight | Approximately 17.6 kg |
