Description

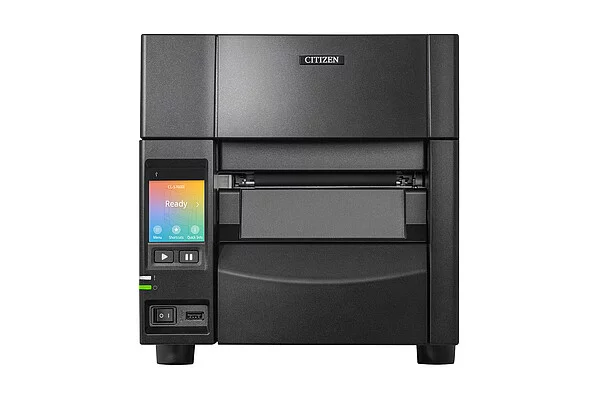

Citizen CL-S703 Industrial Label Printer
The Citizen CL-S703 is a high-performance industrial barcode printer designed for heavy-duty applications that require precision and durability. Delivering a sharp 300 dpi resolution, it is the ideal choice for printing small labels, high-density 2D barcodes (like QR codes and DataMatrix), and intricate logos.
Built with a rugged all-metal chassis, the CL-S703 features the innovative Hi-Open™ case design, which opens vertically to save workspace. Its Hi-Lift™ mechanism ensures that the printhead opens to a full 90°, making media and ribbon loading effortless. With its advanced ARCP™ (Active Ribbon Control & Positioning) technology, the printer eliminates ribbon wrinkling and slippage, ensuring high-quality, professional results every time.
Key Features
-
High-Resolution Printing: 300 dpi printhead for pin-sharp text and detailed graphics.
-
Heavy-Duty Construction: Rugged metal cabinet and internal mechanism for long-term reliability in industrial environments.
-
Hi-Open™ Case: Unique vertical opening design prevents the footprint from changing when the cover is open.
-
Active Ribbon Control (ARCP™): Maintains ribbon tension automatically to prevent wrinkles and unreadable labels.
-
Cross-Emulation™: Automatically switches between Zebra® (ZPL) and Datamax® (DMX) languages for easy integration.
-
User-Friendly Interface: Large backlit LCD screen and four-button control panel for easy configuration and status updates.
-
Front-Loading Design: Allows for easy access to all operations, including media changes and ribbon replacement.
Technical Specifications
| Feature | Specification |
| Print Method | Thermal Transfer & Direct Thermal |
| Resolution | 300 dpi (12 dots/mm) |
| Max. Print Speed | Up to 8 inches per second (200 mm/sec) |
| Max. Print Width | 4.10 inches (104.1 mm) |
| Max. Media Width | 1.00 to 4.65 inches (25.4 to 118.1 mm) |
| Max. Ribbon Length | 450 meters (Ink side In or Out) |
| Connectivity | Standard: USB, Serial (RS-232), Parallel |
| Optional Interfaces | Ethernet (10/100 BaseT), Wireless LAN (802.11b/g/n) |
| Memory | 16 MB SDRAM, 4 MB Flash |
| Media Sensors | Fully adjustable gap, notch, and reflective black mark |
| Dimensions | 255 x 490 x 265 mm |
| Weight | Approx. 13.3 kg |
