Description

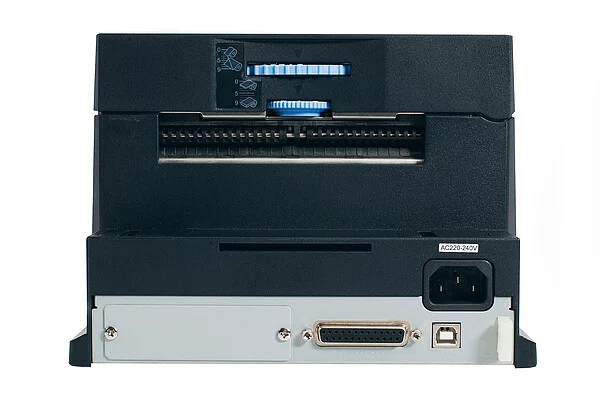

Citizen CL-S400 Label Printer

The Citizen CL-S400 is a compact, high-performance desktop label printer specifically engineered for efficient ticketing and labeling.¹ Built with a self-contained Hi-Lift™ metal mechanism, it offers the durability of an industrial printer in a desktop-sized footprint.² It is an ideal solution for applications requiring high-quality direct thermal printing, such as boarding passes, event tickets, retail tags, and logistics labels.³ With its ENERGY STAR® certification and space-saving design (including an integrated power supply), it is both eco-friendly and perfect for cluttered workspaces like retail counters or healthcare stations.

Key Features

Durable Build: Features the proven Hi-Lift™ all-metal mechanism for easy media loading and long-term reliability.
Space-Efficient Design: Compact footprint with an internal power supply to keep your workstation clean and organized.
Versatile Media Support: Handles both standard roll media and fanfold ticket media, supporting extra-thick tags up to 254 µm.
Intuitive Interface: Equipped with a 2-color backlit LCD control panel for quick configuration and instant error status alerts.
Cross-Emulation™ Technology: Automatically switches between Zebra® ZPL2® and Datamax® emulations for seamless integration into existing systems.
Eco-Friendly: ENERGY STAR® compliant with efficient sleep and standby modes to reduce power consumption.
Adjustable Sensors: Includes fully adjustable gap, notch, and reflective black mark sensors to accommodate various media shapes.

Technical Specifications

Feature	Specification
Print Method	Direct Thermal
Resolution	203 dpi (8 dots/mm)
Max. Print Speed	6 inches per second (150 mm/s)
Max. Print Width	4.1 inches (104 mm)
Media Width Range	0.77 to 4.65 inches (19.5 to 118 mm)
Media Thickness	0.0635 to 0.254 mm
Max. Roll Size	5 inches (125 mm) Internal / 8 inches (200 mm) with external holder
Interfaces	Standard: USB 2.0, Serial (RS-232C)
Optional Interfaces	Ethernet (10/100), Parallel (IEEE 1284), Wireless LAN, Bluetooth
Emulations	Datamax® DMX, Zebra® ZPL2®, Eltron® EPL2®, BASIC Interpreter
Memory	16 MB RAM, 8 MB Flash
Dimensions	206 x 149 x 150 mm
Weight	Approx. 2.68 kg
